Product Description
Dear customer:

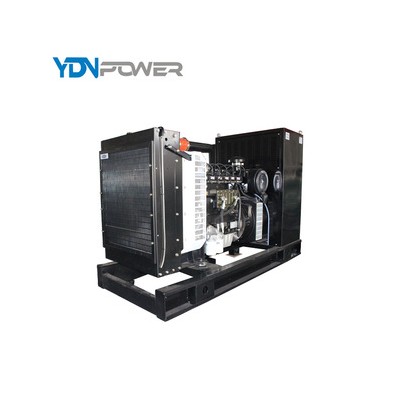

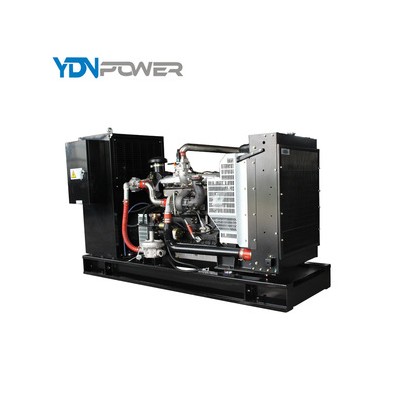

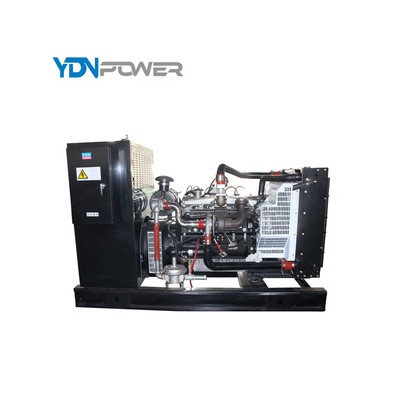

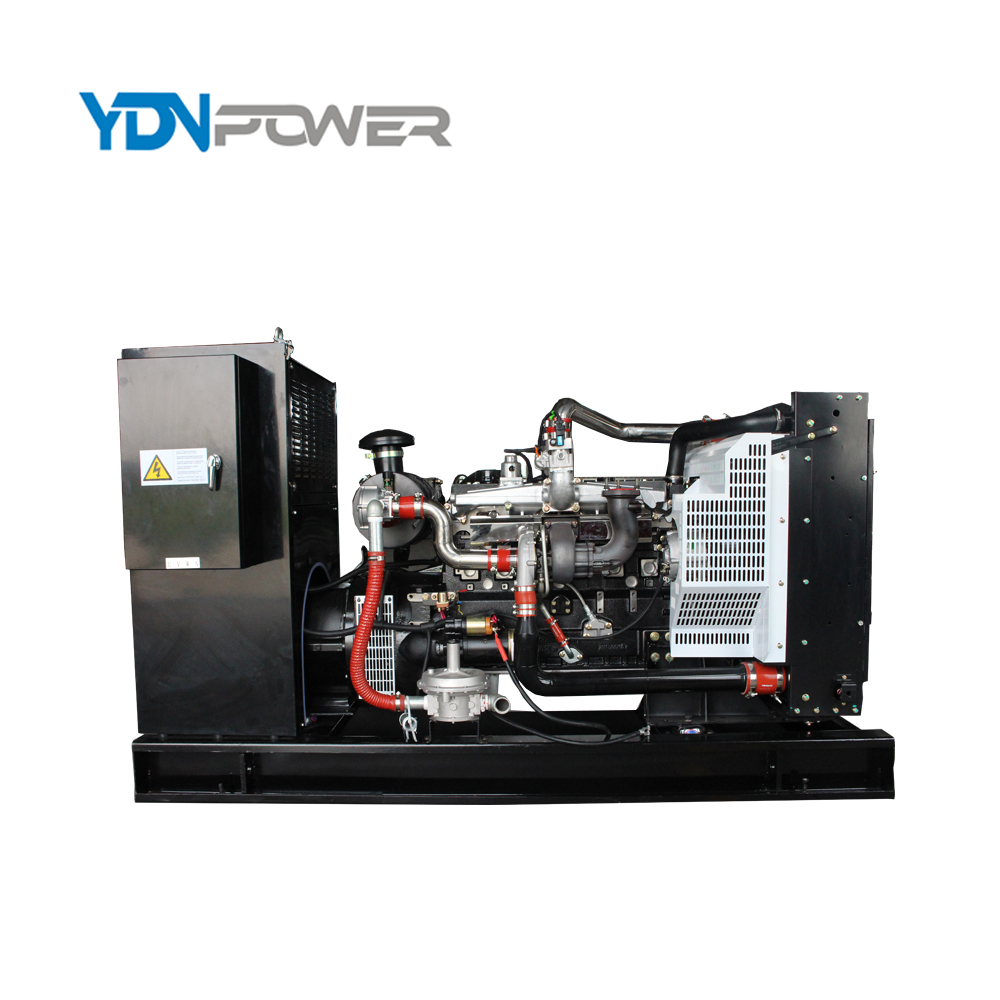

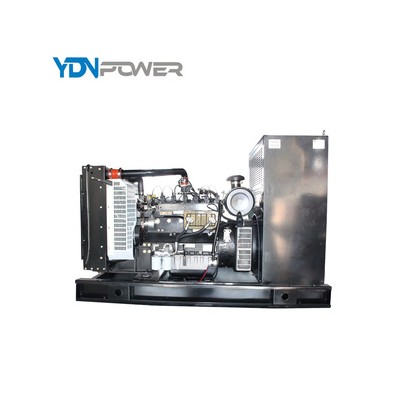

The pictures and detailed parameters of the 100 kva biogas generator set are as follows.
please check.
| 100kva Biogas Generator | |||
| Genset Model | YDNL-80 | ||
| Rated Power(Kw/KVA) | 80/100 | ||
| Rated Current(A) | 144 | ||
| Dimension(mm) | 2150*800*1430 | ||
| Gross Weight (kg) | 1300 | ||
| Engine | Model | 1006-G6TAG | |
| Type | Water-cooled, 4-stroke, 6 cylinder in-line | ||
| Rated Power(Kw/KVA) | 100 | ||
| Rated Speed(rpm) | 1500 | ||
| Cylinder No. | 6 | ||
| Bore*Stroke(mm) | 100×127 | ||
| Cooling Method | Water cooling | ||
| Oil Consumption(g/kw.h) | 1 | ||
| Gas Consumption(m3/h) | 48 | ||
| Starting method | 24V DC | ||
| Alternator | Brand | FARRAND | |
| Model | FLD80 | ||
| Rated Power(Kw/KVA) | 80/100 | ||
| Efficiency | 92.50% | ||
| Voltage Regulation | ±1 | ||
| Voltage Regulation | Brushles, Self Excitation | ||
| Insulation Class | H | ||
| Control System | Model | Smartgen HGM6110 | |
| Working Voltage | DC8.0V to DC35.0V, continuous | ||
| Overall Dimensions | 197 mm x 152 mm x 47mm | ||
| Panel Cutout | 186mm x 141mm | ||
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | ||
| Weight | 0.56kg | ||

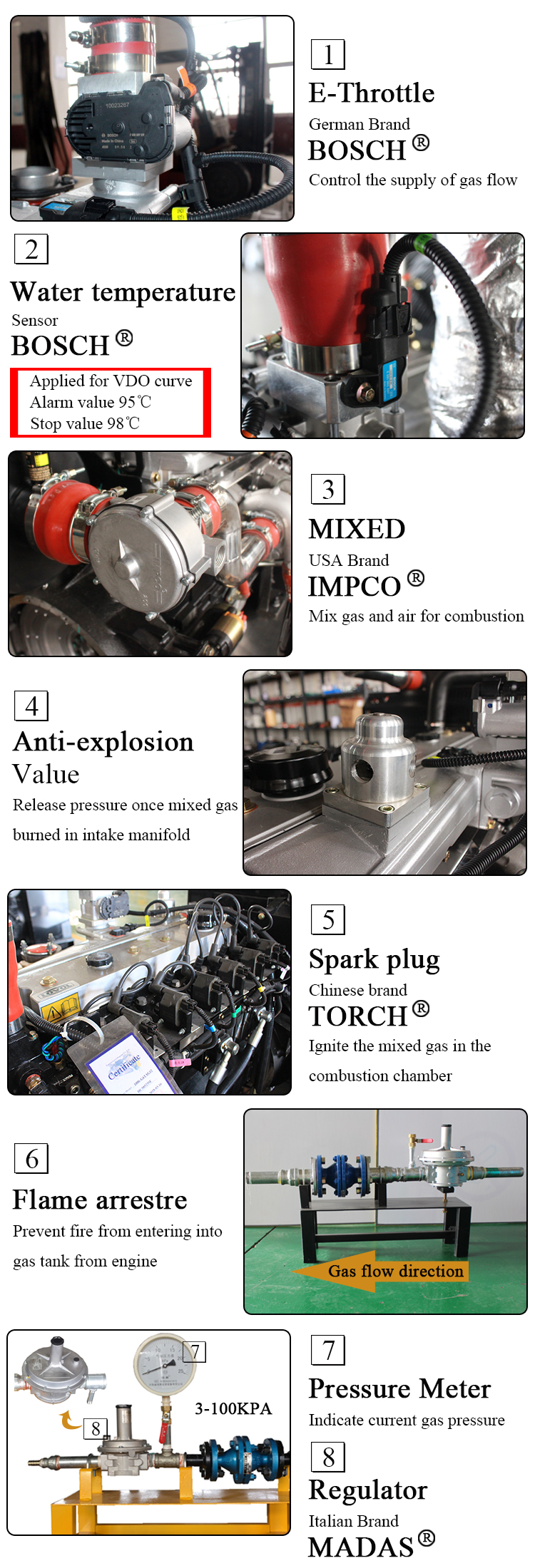

Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts
Our Services

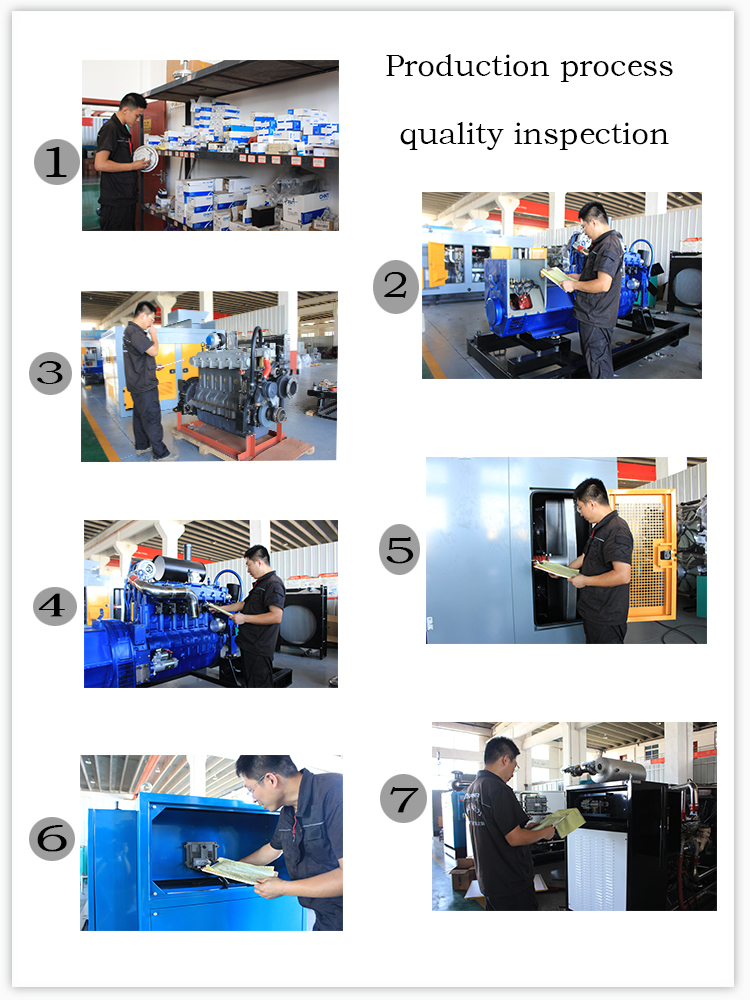

In order to ensure that 100kva biogas generator is 100% qualified, our factory has strict quality inspection process.
1).Strict inspection of all components
2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.
3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.
4).Check gas engine electronic control circuit
5).Check the heat sink, radiator and radiator lines.
6).Check the ECU, the brain of the gas generator set.
7).Check the control module to ensure that the generator control system is operating properly.

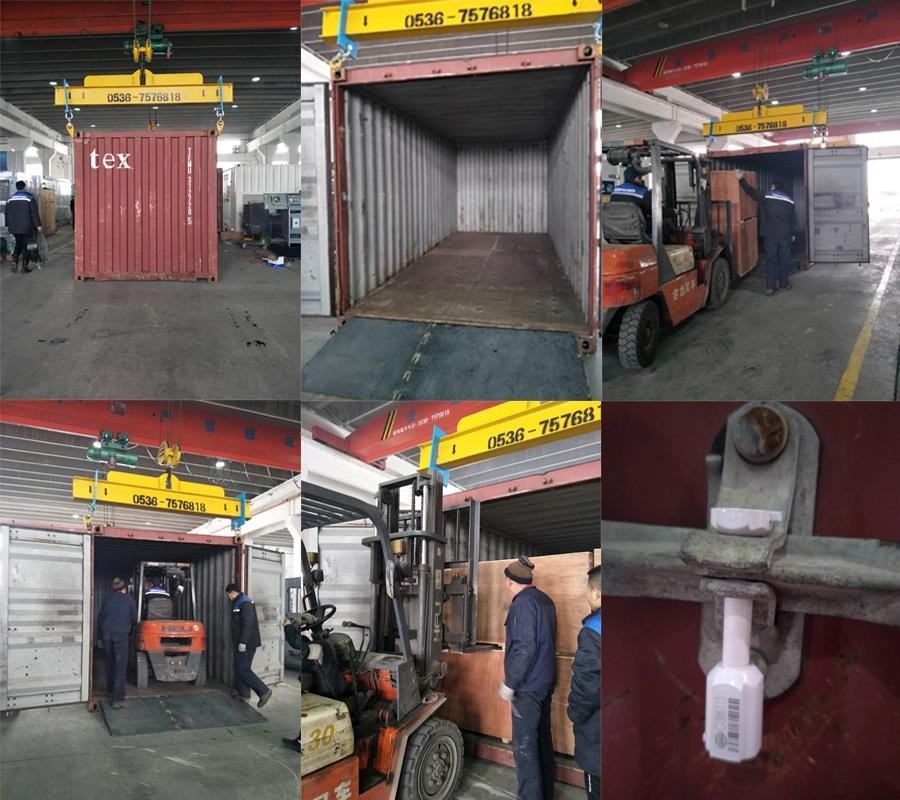

Packaging & Shipping
For open type, packing with plywood case; For silent type, packing with bubble and stretch film.
