Dear customer:

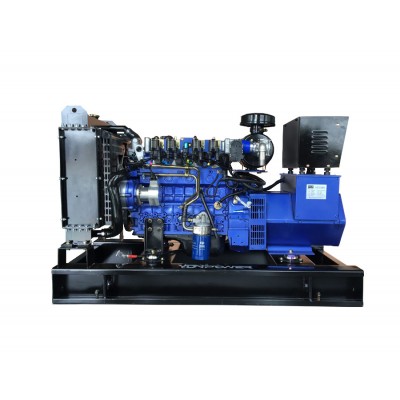

The pictures and detailed parameters of the natural gas power generator are as follows.
please check.
| Factory price for sale small biogas generator 18kva generator set | |||
| Genset Model | YDNYD-15 | ||
| Rated Power (kW/kVA) | 15/18.75 | ||
| Rated Current (A) | 27 | ||
| Dimension (mm) | 1700×720×1250 | ||
| Gross Weight (kg) | 620 | ||
| Biogas engine | Brand | YD4B1D(490) | |
| Configuration | Water-cooled, 4-stroke, 4cylinder in-line | ||
| Rated Power (kW/kVA) | 21 | ||
| Rated Speed (rpm) | 1500 | ||
| Cylinder No. | 4 | ||
| Cooling Method | Water cooling | ||
| Oil Consumption (g/kw.h) | 2 | ||
| Gas Consumption (m3/h) | 4.95 | ||
| Starting method | 12V DC | ||
| Gas control system | E-Throttle | BOSCH®(German Brand) | |
| MIXER | IMPCO®(USA Brand) | ||
| Regulator | MADAS®(Italian Brand) | ||
| Spark plug | TORCH®(China Brand) | ||
| Water temperature | BOSCH®(German Brand) | ||
| Alternator | Brand | FARRAND | |
| Model | FLD-15 | ||
| Rated Power (kW/kVA) | 15/18.75 | ||
| Efficiency | 92.50% | ||
| Voltage Regulation | ±1 | ||
| Voltage Regulation | Brushles, Self Excitation | ||
| Insulation Class | H | ||
| Control System | Brand | SMARTGEN | |
| Model | HGM6110 | ||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||
| Overall Dimensions (mm) | 197*152*47 | ||
| Panel Cutout (mm) | 186*141 | ||
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | ||
| Weight | 0.56kg | ||
Product details

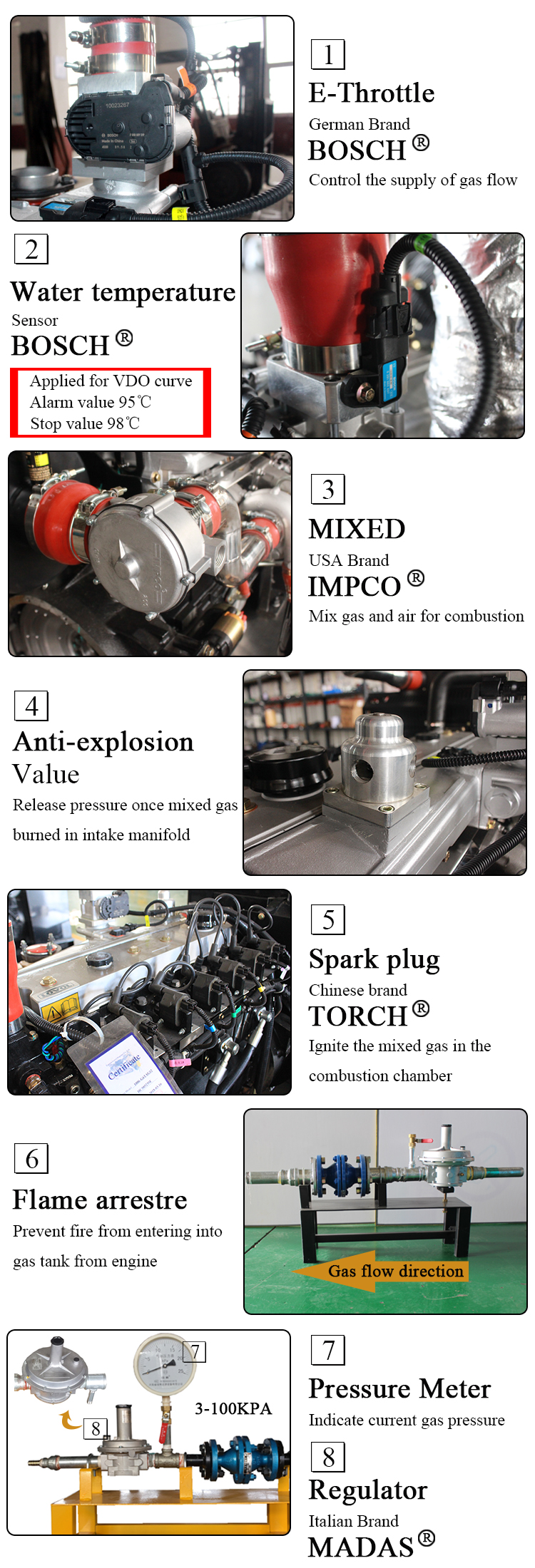

And we use more high quality gas generator parts for you as following parts Unlike a diesel generator set, the gas system of a gas generator set is very important.Product details
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts
Our Services
In order to ensure the natural gas power generator is 100% qualified, our factory has strict quality
inspection process.
1).Strict inspection of all components
2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.
3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.
4).Check gas engine electronic control circuit
5).Check the heat sink, radiator and radiator lines.
6).Check the ECU, the brain of the gas generator set.
7).Check the control module to ensure that the generator control system is operating properly.
Packaging & Shipping
For open type, packing with plywood case; For silent type, packing with bubble and stretch film.
Company Information
YDN POWER has been operating since 2000 and is now one of the most reputable companies in the field of
gas power generation in China. We cover the entire value chain of gas generator set, including design,
manufacturing, sales, installation, commissioning etc. Thanks to our professional team and modern facilities,
we are able to provide reliable gas power solution in the range of 10-1200KW with CNG, BIOGAS, LPG and other
types of gas sources,which is significantly meaningful to energy-saving and environmental protection.
